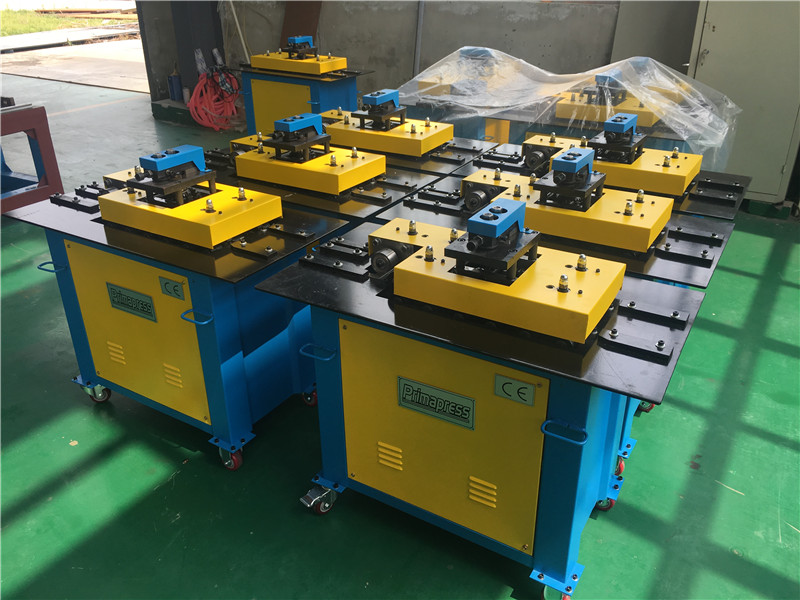

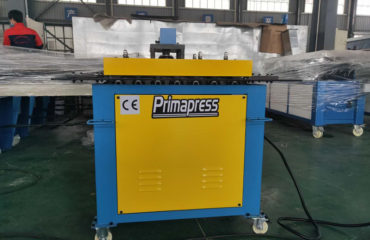

Bone reeling machine, also known as reeling machine, seaming machine, undercutting machine, duct production line, duct reeling machine. It is a multifunctional machine type,

mainly used for the lock forming processing of the plate connection and the closed connection of the circular duct; the lock forming machine structure is composed of three parts:

the feeding part; the transmission part; the forming part.

1. The forming part mainly refers to the main machine part, and the core part is the roll. When there is too much feeding between the two pressure rollers or the extrusion
2. between the rollers.
3. The feeding part is mainly manual feeding, using the gap between the rolls to feed.
4. In the transmission part, the main transmission system is: a motor, a triangle belt, a reducer, an open gear, and a roller. The main engine is powered by an electromagnetic
5. speed-regulating motor, which is transmitted to the driving shaft through a belt pulley, a cylindrical gear reducer, and a rod-pin coupling.

The lock forming machine can be used as a duct production line to process and produce various types of bones. The thickness of the processed plate is 0.5-1.5mm. All gears, shafts,

and rolls of the machine are made of high-quality steel. After strict heat treatment process, the machine is durable, stable in quality, easy to install, beautiful in appearance, reasonable in mechanical principle, flexible in movement, and convenient in operation. It can satisfy users. Different requirements. The lock forming machine is suitable for the production of air ducts for ventilation, air conditioning, purification and other devices. According to requirements, it can be made into various square and rectangular thin plate air ducts. It is an indispensable

mechanized equipment for various sheet metal processing and duct production lines. .

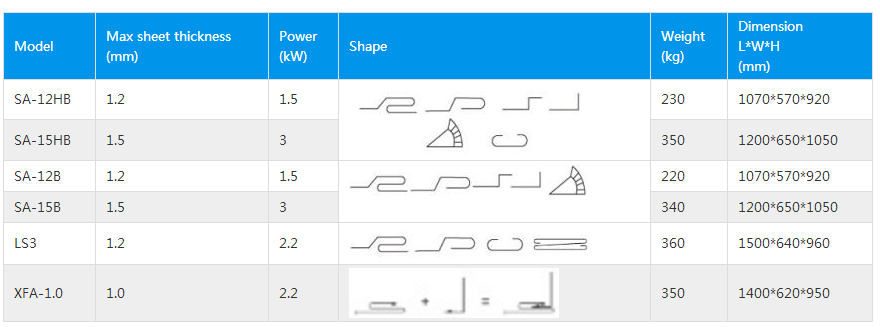

Equipment characteristics and technical parameters of air pipe production line for lock forming machine

The bearings of our company’s air pipe production line for lock forming machine all adopt national standard bearings, which can effectively avoid the wear of the side plate, thereby

prolonging the service life. All rolling reels of the high-end lock forming machine duct production line adopt Gcr15, which is wear-resistant

Good performance; equipped with a reducer to increase the output torque, running smoothly and quietly, the whole equipment is beautifully shaped and has stable performance. The lock forming machine air is the most basic air duct production equipment. Through simple adjustments, it can achieve a

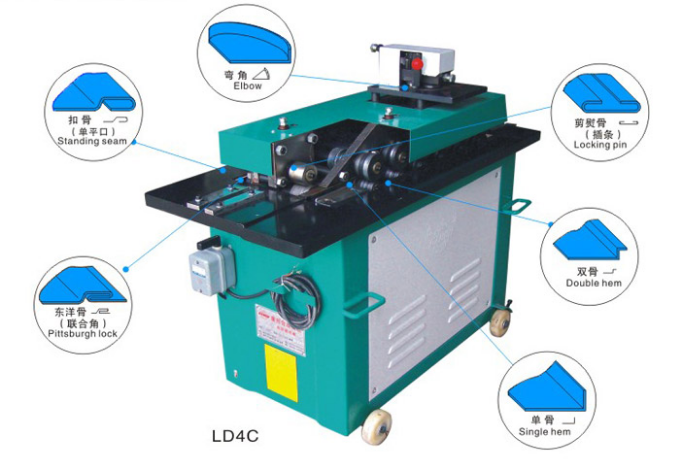

Multiple functions, complete the functions of joint bite, single flat bite, vertical bite, C-shaped insert and square elbow bite

After the equipment of the air duct production line is used, clean up the iron filings and debris attached to the equipment in time; if the equipment is not used for a long time,

add anti-rust oil to the surface of the roller in the 2-bite rolling device.

The lock forming machine is suitable for the production of air ducts for ventilation, air conditioning, purification and other devices. It is a multi-functional machine type, mainly

used for the lock forming processing of plate connection and closed connection of round ducts. It can meet the different shapes of bone types manufactured by air ducts. The thickness

of the processed plate is 0.4-1.5mm. All gears, shafts, and rolls of the machine are made of high-quality steel. After a strict heat treatment process, the machine is durable, stable in quality,

easy to install, beautiful in appearance, and reasonable in mechanical principle. This kind of square and rectangular thin plate air duct is an indispensable mechanized equipment

for various sheet metal processing and duct production. We have strong technical force and reliable quality assurance system. The ventilation duct lock forming machine developed

and produced has high precision, good quality, perfect after-sales service, and long-term maintenance and spare parts are provided.
