Functional characteristics of the common plate tdf flange machine for ventilation ducts

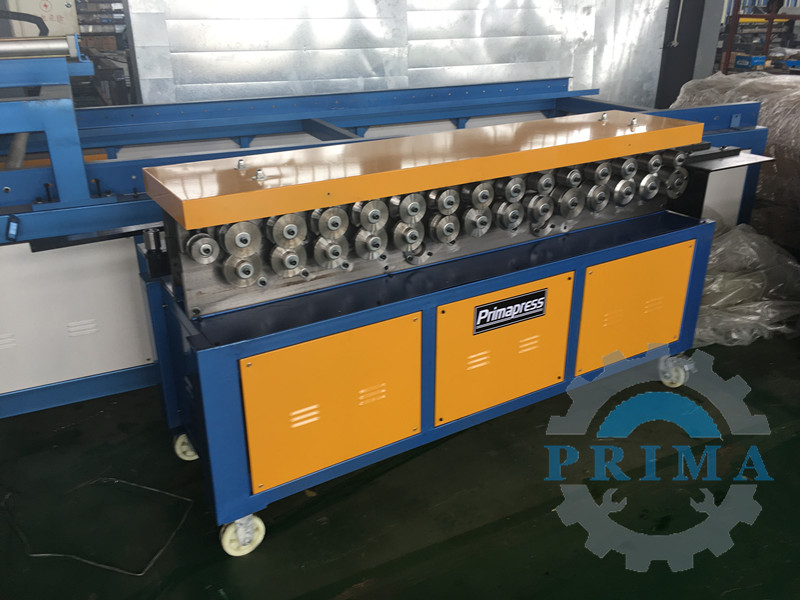

The 15-type ventilation duct common plate tdf flange machine is designed for 1.5mm galvanized sheet, and can also process 1.0 stainless steel sheet. This machine adopts

GCr15 high-strength material, 15-pass roll forming, more stable use, single side forming tdf flange , The other side is formed with a ticking edge; the service life is more than

5 times longer than that of ordinary 45 steel.

Operating Regulations of the Ventilation Pipe Co-plate tdf flange Machine

1. Before starting the machine, check whether all parts of the locomotive are stuck and loose.
2. It is not allowed to remove the machine tool guard while driving.
3. Fill the bearing and gear with lubricating oil properly.
4. Fill the surface of the roller with lubricating oil properly
5. Be sure to use the specified plate thickness.
6. It is never allowed to form on both sides of the machine wheel at the same time.
7. Do not fill the part of the adjusting screw with oil, otherwise it will cause the screw to loosen and fall off.
8. Do not allow overlapping plates to pass through the rollers.
9. When the machine can work normally, it is not allowed to adjust the adjustment screws.
10. The plate should be leveled, the reel bone should be aligned with the plate cutting line, the surface of the steel plate should be cleaned, and the cutting line should be clear.
11. The hand should be a certain distance away from the cutting line to avoid crushing. During the first trial cut, the connecting piece needs to be lubricated to prevent rusting
12. of the connecting piece and to facilitate the assembly of the connecting piece. The cutting length should not exceed 15mm. Otherwise, it will be difficult to correct it later,
13. as it rolls up and down. When lifting up, the plate should be quickly pushed into the cutting edge; when the upper roll of the ventilation pipe co-plate tdf flange machine
14. moves downwards, due to the unbalanced force on both sides of the steel plate, the steel plate on the side of the lower and upper rollers should be adjusted well Press the
15. plate to maintain a proper gap between it and the steel plate to keep the shear straight.
16. When using the profile cutting head, the section shape of the upper and lower rollers should be selected to match the profile section. And adjust the pressure rod according to the specifications and models of the profile, so that it can effectively press the profile, so as to prevent the profile from springing up and hurting people during work.
17. The operator should be familiar with the safe operating procedures of the equipment. When two or more people operate, one person should be designated to be in charge of the command. Perform regular maintenance work according to equipment requirements.
18. After the end of each shift, check whether the power switch of the equipment is off, and clean up the site. Routine maintenance of the equipment, fill in the equipment operation records, and complete shift work in accordance with relevant regulations.
