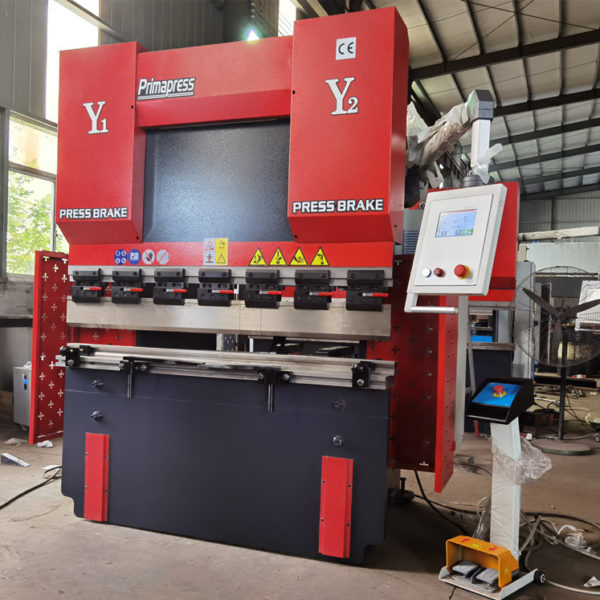

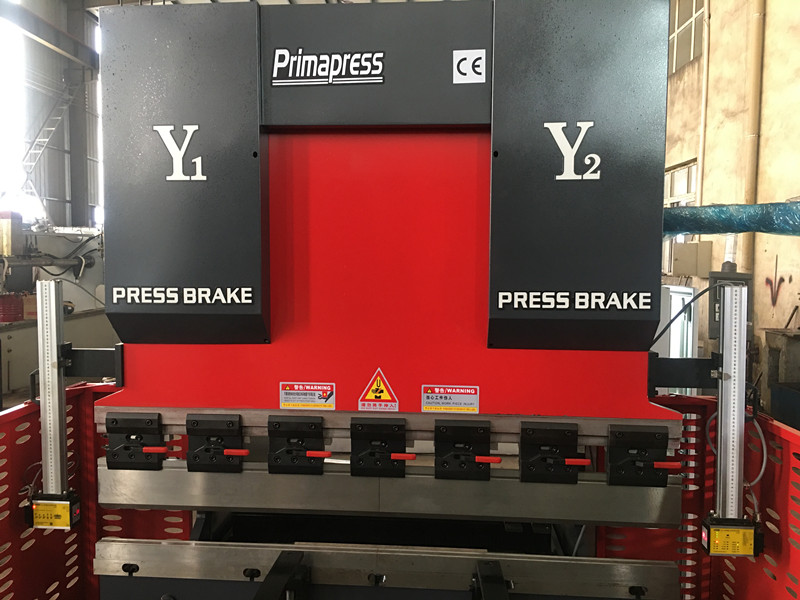

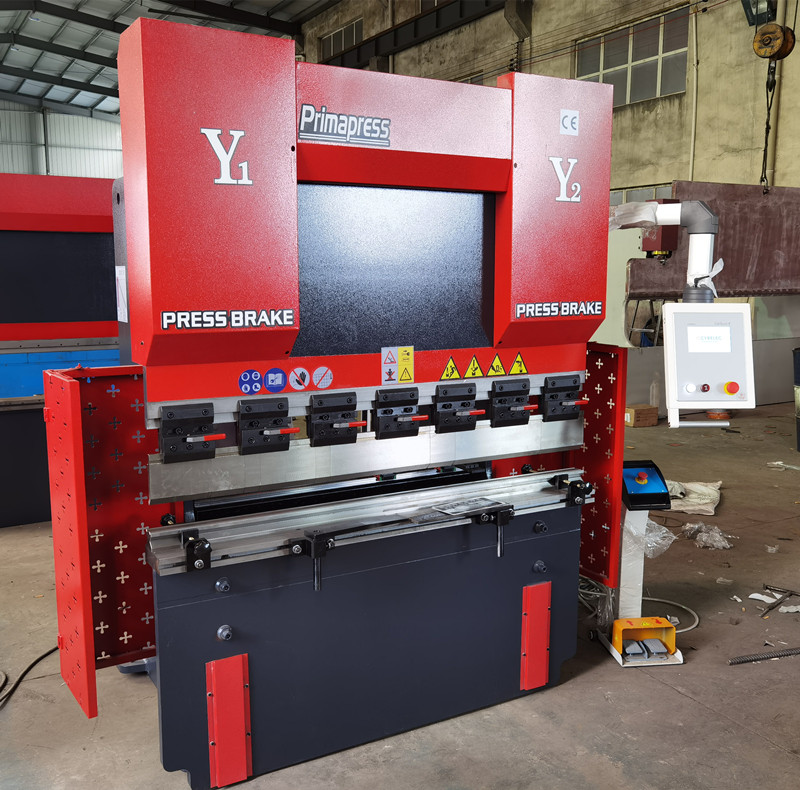

Torsion bar type cnc hydraulic press brake machine CNC Press break bending machine CT8
The Whole Structure of Press Brake:
■ Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

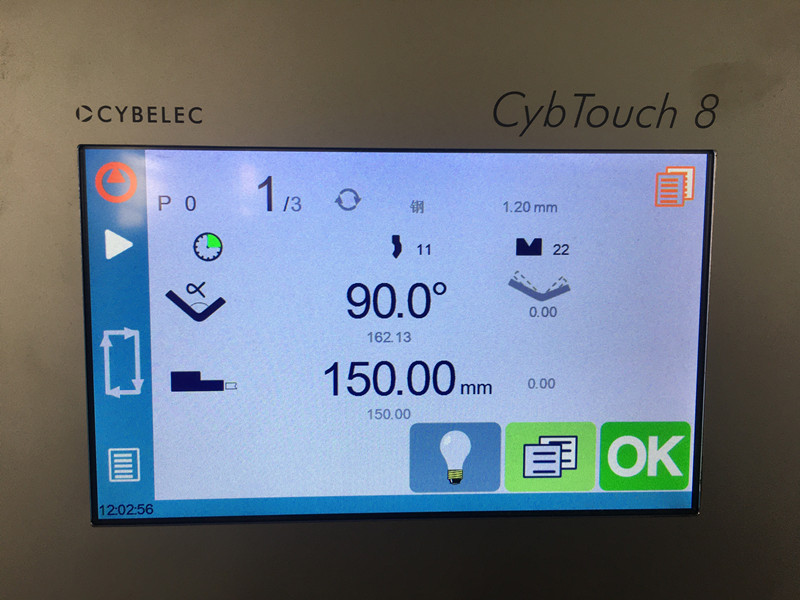

■Prima PRESS BRAKE is Equipped with the Delem user-friendly user interface,the DA-41 provides all main press brake functionality.
■Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.
■ Provides CNC control of standard Y-axis +X-axis + Manual R-axis + Z-axis.
Attachment with the machine& Machine key components list
| No. | 1 years spares | Remark | Name | Origin | ||
| 1- | Grease gun | Free of charge | Asynchronous motor | Siemens, Germany | ||
| 2- | Keys to button lock and electric cabinet lock | FOC | Controller | CT8, Swiss | ||
| 3- | Foundation bolts | FOC | Transformer | SCHNEIDER | ||
| 4- | O-type sealing rings | FOC | AC contactor | SCHNEIDER | ||
| 5- | Combined washers | FOC | Circuit Breakers | SCHNEIDER | ||
| 6- | Mobile type foot switch | Servo motor | Estun | |||
| 7- | Operation & maintenance manual | In English | Gear pump | Siemens pump | ||
| 8- | Electrical diagram | In English | Sealing parts | Valqua ,Japan | ||
| 9- | Operation Instruction ENGLISH
Operation Instruction（Machine） Packing list, Instruction of System |
Hydraulic Integrated Systems&valves | Bosch, Germany | |||

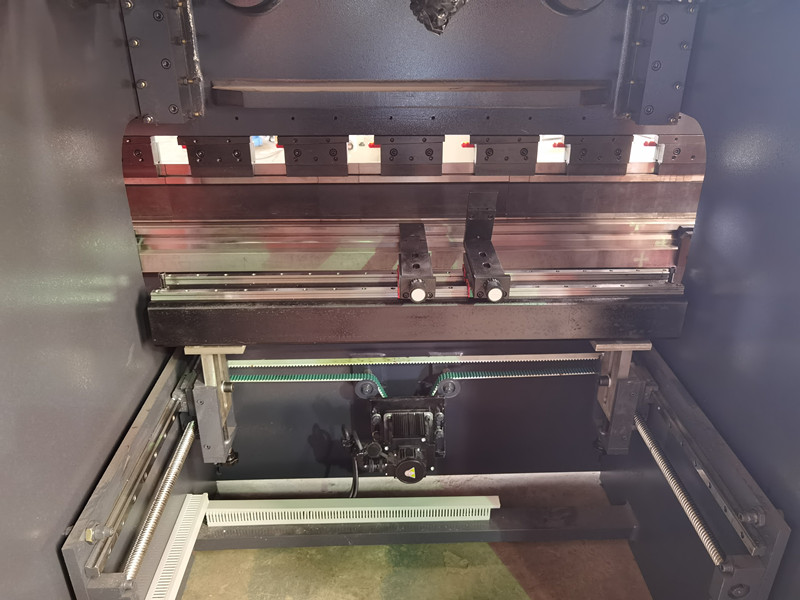

High positioning BACKGAUGE:
Standard X-axis travel is 500mm with third gauge step capable of gauging parts up to 600mm with standard back gauge (most machines)
■ Stable AC servo motor-driven precision X-axis back gauge with linear guide and ball bearing system.
■Back gauge fingers with two gauging steps used one for short and the other for long bending depths.
■ Back Gauge positioning fingers move along linear bearings with ±0.01 mm. positioning tolerance.
