Product Overview

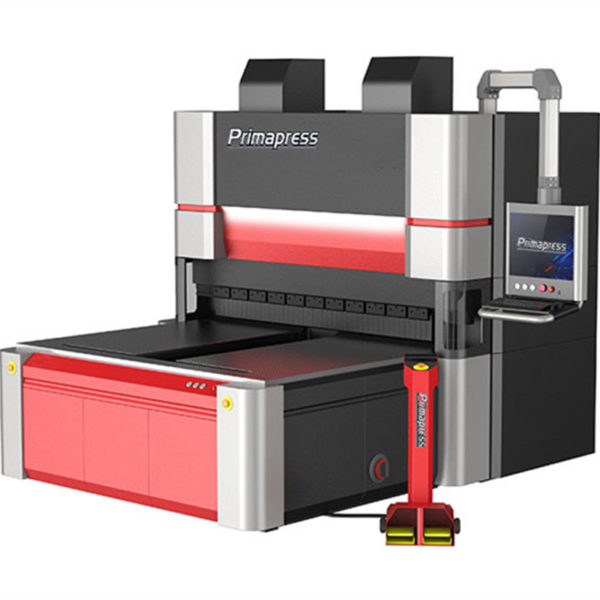

PRIMA2500 uses a servo motor direct drive main drive, which abandons the bending method of the hydraulic station as the power source. It has remarkable characteristics and powerful functions. It has high efficiency, energy saving, noise reduction, high precision and other functions, which can achieve multilateral one-time bending Various processes such as arc forming.
The size of the processed plate is 1400x1400mm, which controls 9 axes of U, Y, C, X1, X2, W1, W2, Z1, Z2
2, 2. Main technical parameters
No. Technical Parameter Unit Bending Center Model
PRIMA2500
1 Bending length mm 2500
2 Maximum plate length mm 2500
3 Maximum sheet width mm 2500
4 Maximum bending height mm 170
5 Minimum molding size of four sides mm 400 * 250
6 The minimum forming size of one side mm 160
7 Minimum arc radius mm 1.2
8 Minimum continuous bending speed S 0.5
9 Bending angle degree 0-180
10 Number of control axes 9
11 Maximum feeding speed m / min 30
12 Equipment size mm 3700 * 3000 * 2750
13 Equipment weight T 16

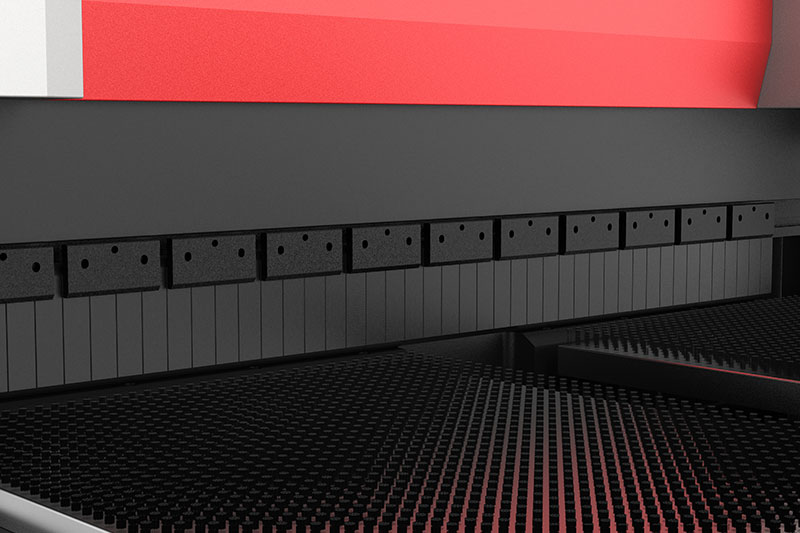

16 Workbench structure / brush and universal ball
- Bending plate thickness range
Material properties Maximum thickness (mm)
Stainless steel (SS) 1mm
Carbon Steel (MS) 1.5mm
Aluminum plate (AL) 2.5mm
