Hydraulic 2 rolls bending machine, two roller bending machines
Two rollers cnc rolling machine is a new series device. On the device, the up-roller is steel
roller, and the bottom roller inside is steel roller with outside elastic layer. When operate device, feed the plate between the two rollers, and adjustment the distance of the two rollers. Let them connect—down pressure—bottom roller deformation, drive the two rollers, so the plate continuous coiled into a shape. This device with some advantages like as, one time coiled into a shape, high efficiency, high geometry accuracy, good surface without scratching, simple structure with only 2 rollers, operate easily, it easy to realize cnc operation procedure.

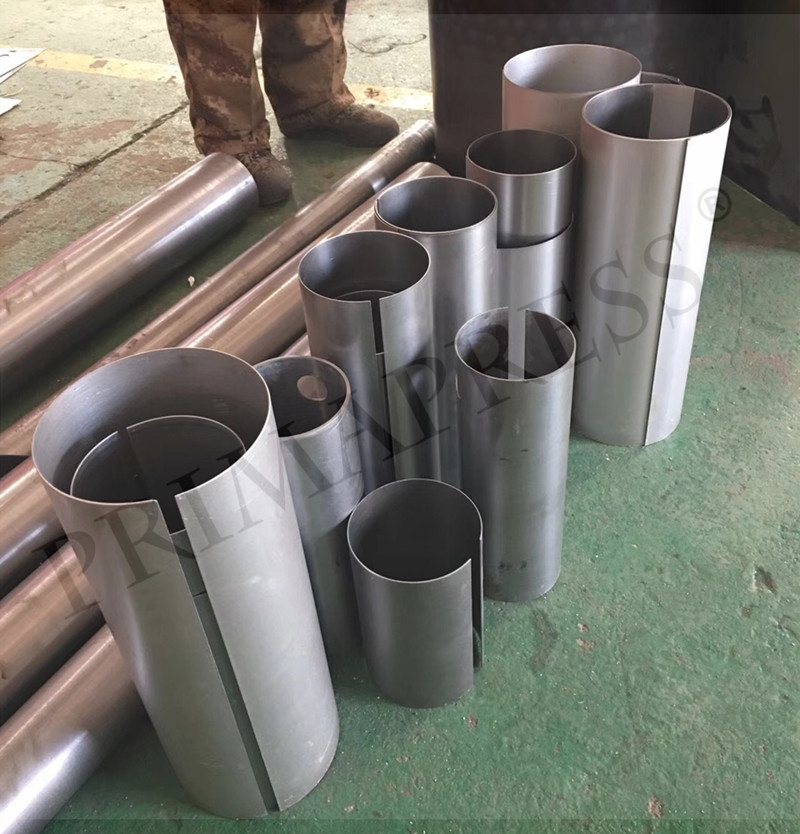

This device widely used in ventilation pipe, chimney, filter, solar water heater, automobile exhaust, motorcycle muffler and so on for the thin thickness plate.
Specifications for 2-roll plate rolling machine
| Model | P500 | P750 | P1000 | P1500 |
| Length | 500mm | 750mm | 1000mm | 1500mm |
| Thickness | 0.1-4mm | 0.1-4mm | 0.1-4mm | 0.1-4mm |
| Power | 3kw | 3kw | 5kw | 5kw |
| Straightness | <1mm | <1mm | <1mm | <1mm |
| Min diameter | 75mm> | 100mm> | 120mm> | 150mm> |
| Speed | 0-40m/min | 0-40m/min | 0-40m/min | 0-40m/min |
