Half hydraulic Profile Steel 3 Roller Bending Section Bender Machines 3 Roller Twist Hydraulic Profile bending machine

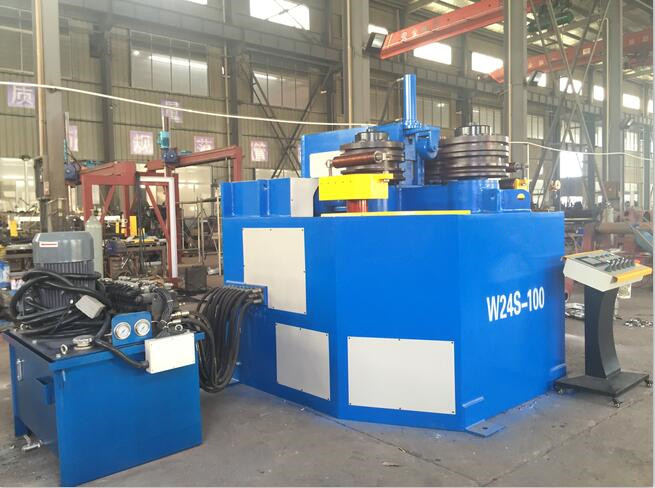

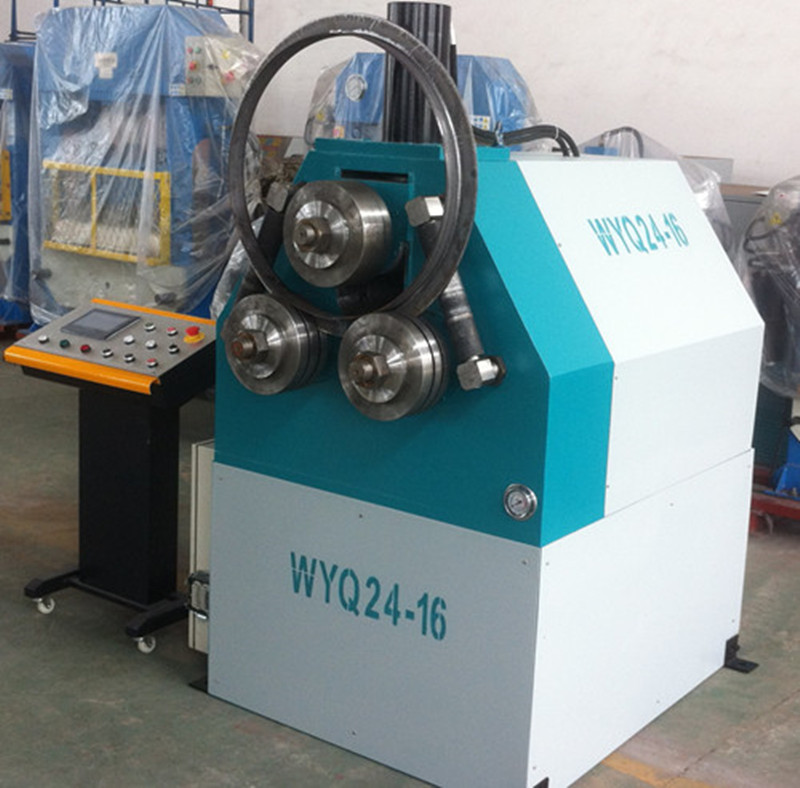

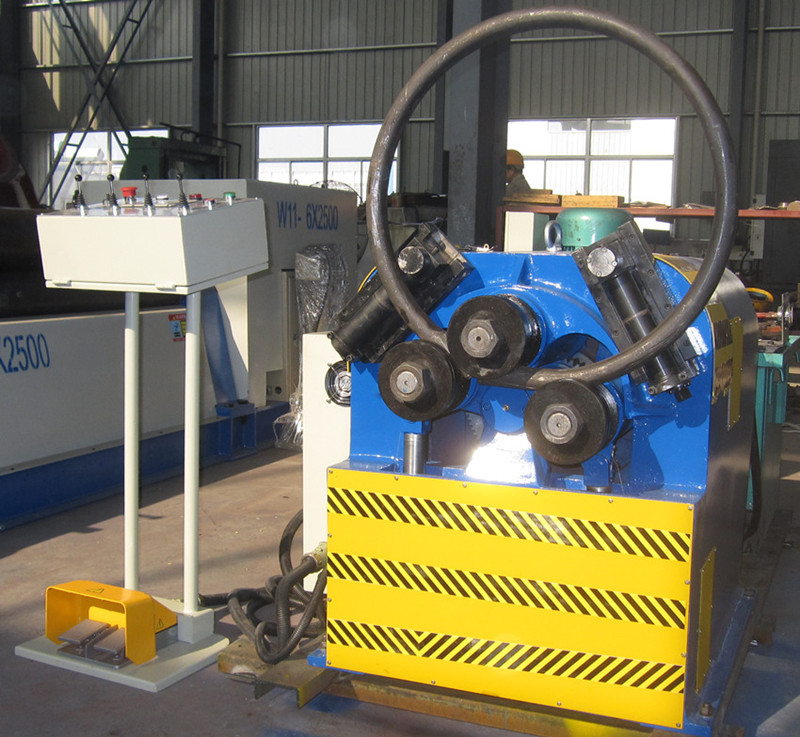

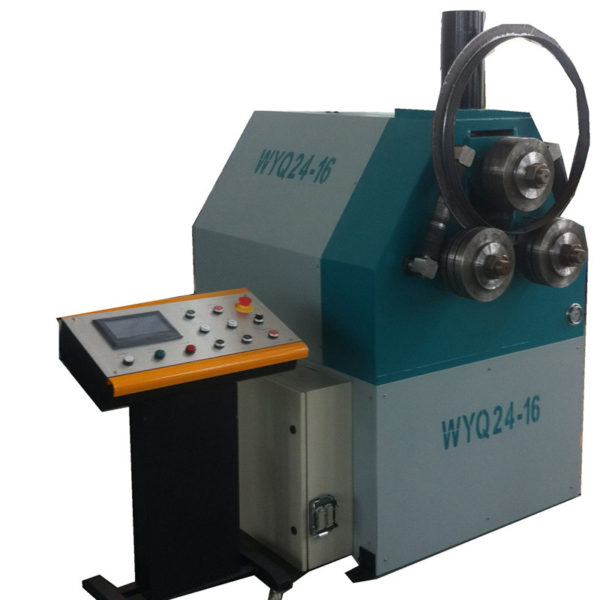

WYQ24-16 Section Bending Machine
Technical Document
- Overview
This section bending machine is high-efficient process equipment used to bend angle steel, channel steel, I-steel, flat steel, side steel, round steel and so on. One time feeding can complete rolling round and corrective round working procedure, it is widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and other business lines.

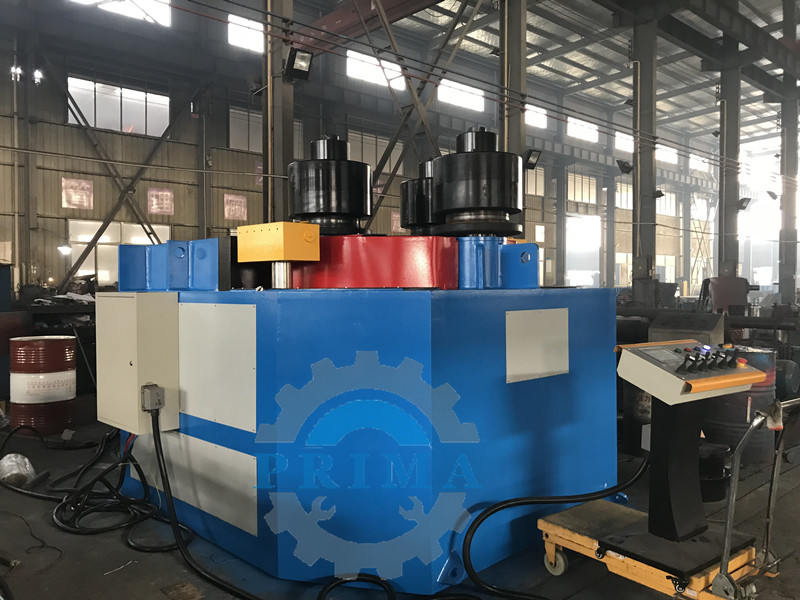

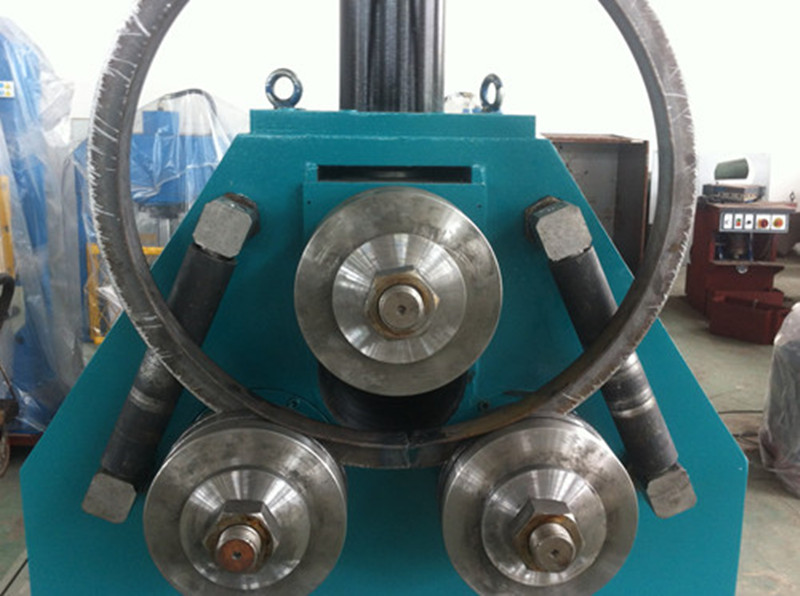

Two lower rollers of the machine are main drive roller, also the three work rollers as main drive roller, support roller are set on the two sides, which is helpful for ensuring the bending quality of asymmetrical section.
This machine which is of advanced structure, reliable operation and complete in function is sophisticated section form equipment in domestic and abroad.
- 2.Our Business concept of Company
- No unqualified products, only best quality products
- General Manager is hired on contract, mainly in charge of quality,
If any quality problem existed, he will be fired at any time.
- Any plate rollingmachine sold in the any place of world,
Our company will be responsible for it forever.
- Keep innovating to offer the customer the best productsandmake 1% progress everyday. .
- The top team creates the top products.
- Technique software
This machine adopts hydraulic-type press, being of huge press, hydraulic motor, reliable performance and low noise. The operation table is set with each indication button, being of automatic, easy operation, safety and low error rate.
- Main Technical parameterand technical sheets
1, Specifications:
| Technical Parameter | WYQ24 SECTION BENDING MACHINE | ||||||
| WYQ24-6 | WYQ24-16 | WYQ24-30 | WYQ24-45 | WYQ24-75 | WYQ24-100 | ||
| Maximum bending section modulus profiles | 6 | 16 | 30 | 45 | 75 | 100 | |
| Plate speed(m/min) | 6 | 5 | |||||
| Profiles yield limit(mpa) | 250 | ||||||
| Angle leg-out | maximum cross-section(mm) | 40*5 | 70*8 | 80*8 | 90*10 | 100*10 | 120*12 |
| Minimum bending diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | |
| Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 40*5 | |
| Minimum bending diameter(mm) | 400 | 550 | 560 | 600 | 600 | 720 | |
| Angle leg-in | maximum cross-section(mm) | 50*5 | 80*8 | 90*10 | 100*10 | 120*12 | 140*16 |
| Minimum bending diameter(mm) | 800 | 1000 | 1100 | 1300 | 1600 | 1800 | |
| Minimum cross-section(mm) | 20*3 | 30*3 | 35*3 | 36*5 | 38*4 | 45*5 | |
| Minimum bending diameter(mm) | 400 | 550 | 500 | 600 | 700 | 760 | |
| Channel steel bent outward | Channel model | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 600 | 800 | 800 | 1000 | 1100 | 1700 | |
| Within the curved channel steel | maximum cross-section(mm) | 8 | 12 | 16 | 20 | 25 | 28 |
| Minimum bending diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | |
| Flat-along face | maximum cross-section(mm) | 100/18 | 150*25 | 180*25 | 200*30 | 220*40 | 250*40 |
| Minimum bending diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | |
| Flat-along edge | maximum cross-section(mm) | 50*12 | 75*16 | 90*20 | 100*25 | 110*40 | 120*40 |
| Minimum bending diameter(mm) | 500 | 760 | 800 | 1000 | 1100 | 1300 | |
| Round tube bending | maximum cross-section(mm) | 42*4 | 76*4.5 | 89*5 | 89*8 | 114*5 | 159*5 |
| Minimum bending diameter(mm) | 500 | 750 | 900 | 900 | 1200 | 2000 | |
| Round steel bending | maximum cross-section(mm) | 38 | 52 | 62 | 75 | 85 | 90 |
| Minimum bending diameter(mm) | 450 | 600 | 600 | 800 | 1000 | 1100 | |
| Square tube bending | maximum cross-section(mm) | 45*3 | 60*4 | 70*4 | 80*6 | 90*8 | 100*10 |
