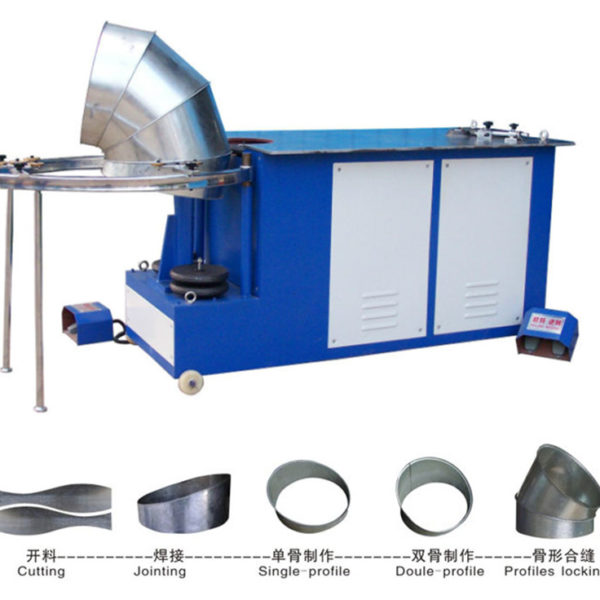

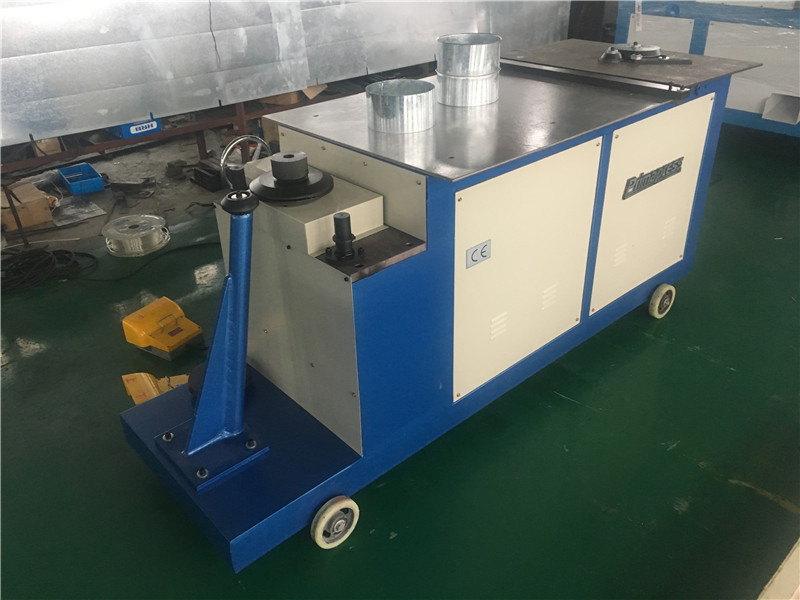

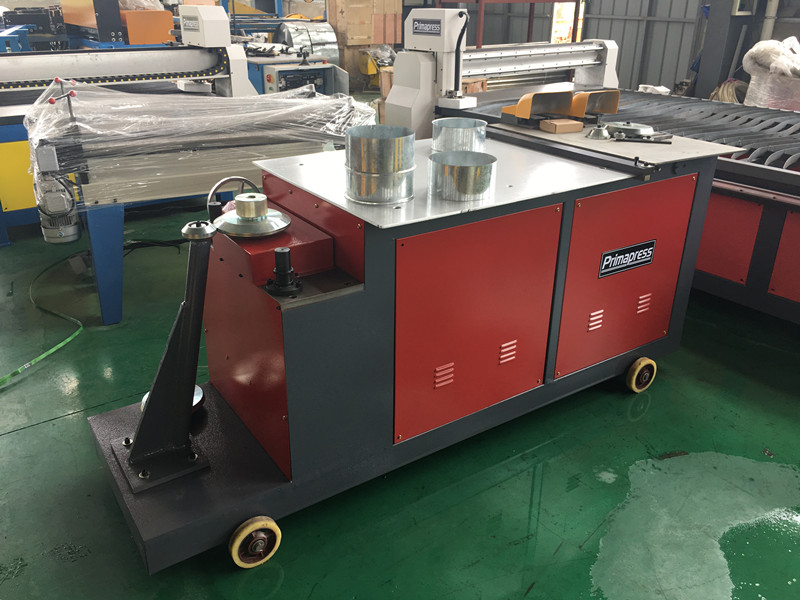

Duct round ventilation duct elbow making machine gore locker for sale

Duct round ventilation duct elbow making machine gore locker for sale

One. Features

1.Dual working station
2.Maximum flexibility – eliminates equipment,s changing over and reduces tool,s changing.
3.Higher production speed
4.Up to 120 m per minute flanging speed
5.Higher capacity
6.Material thickness up to 1.5 mm Galvanised steel and 1.0 mm Stainless steel.
7.Improved seam,s quality
8.Optimised roller,s profile.
9.Virtually no maintenance
10.No lubrication necessary and all rotating parts are made of hardened, high grade steel.

Two. Technical data

Electrical connection: 380V 50 Hz,other connections on request
Total power: 7.5 kw
forming speed: 120m / per min.

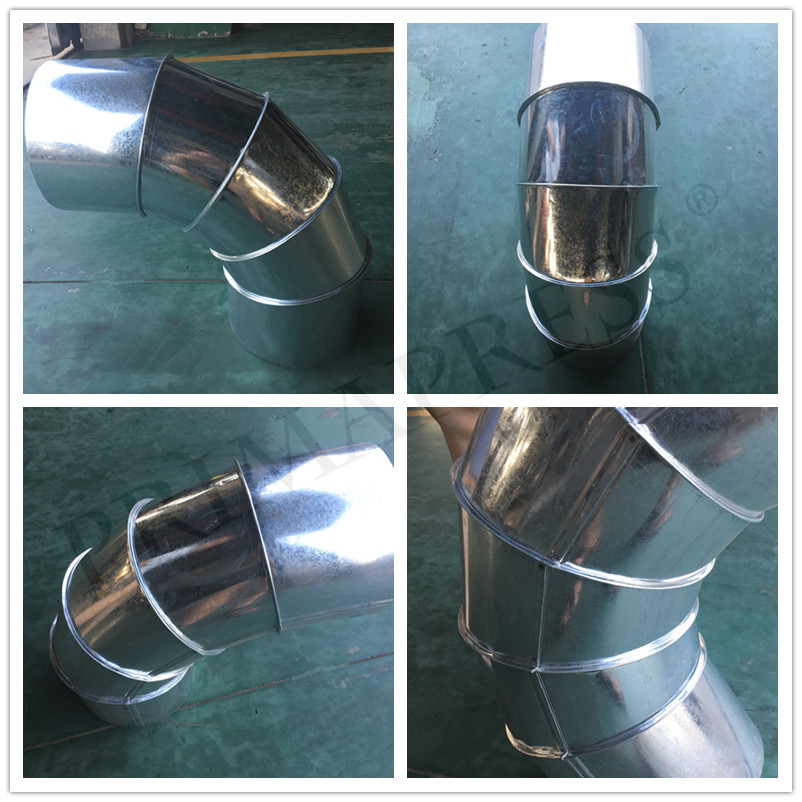

Production time: less than 90 seconds for a bend of 200 mm dia./900/4 segments by 1 Person
Diameter range: 125-1250mm
Min.radius: 1 times diameter,in relation to the centre line of the bend
Net weight: 750 kg and 2550×870×930mm
Material: Thickness in mm
from to
Black steel 0.4 1.5
Galvaniazed steel 0.4 1.5
Stainless steel 0.4 1.0
Aluminium 0.4 1.5

Video in Youtube:

1, https://youtu.be/C2f45OzBCxE       2, https://youtu.be/7BG71Kjj0-k
