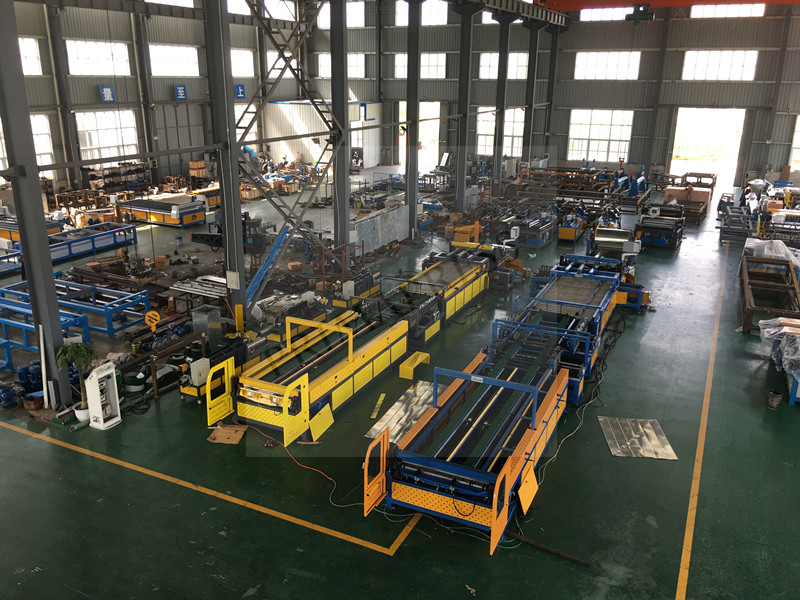

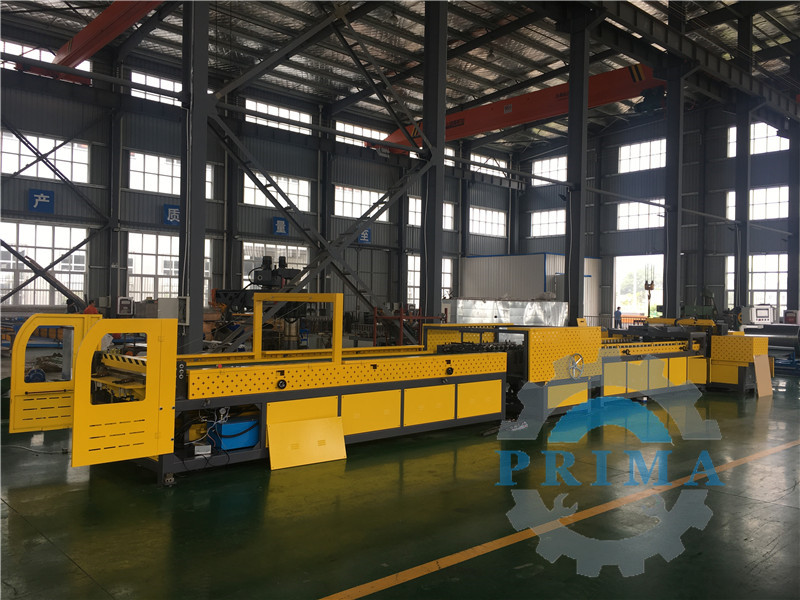

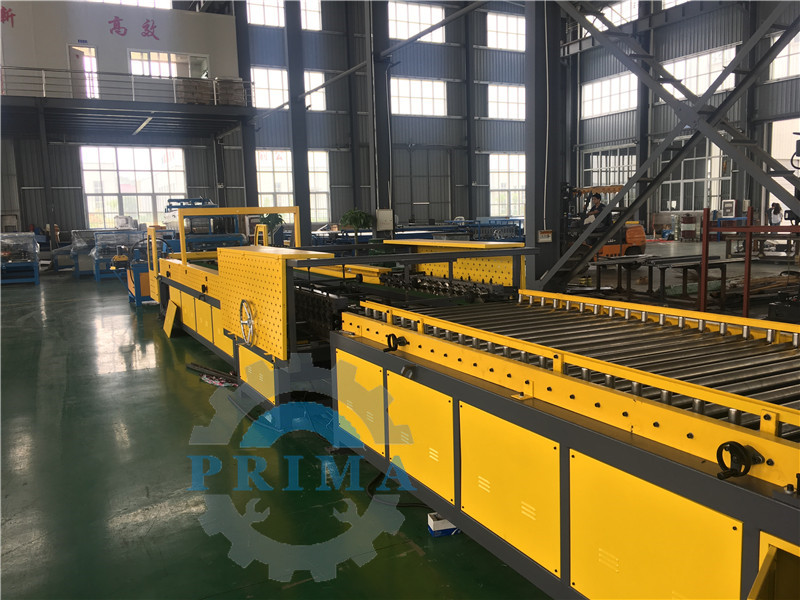

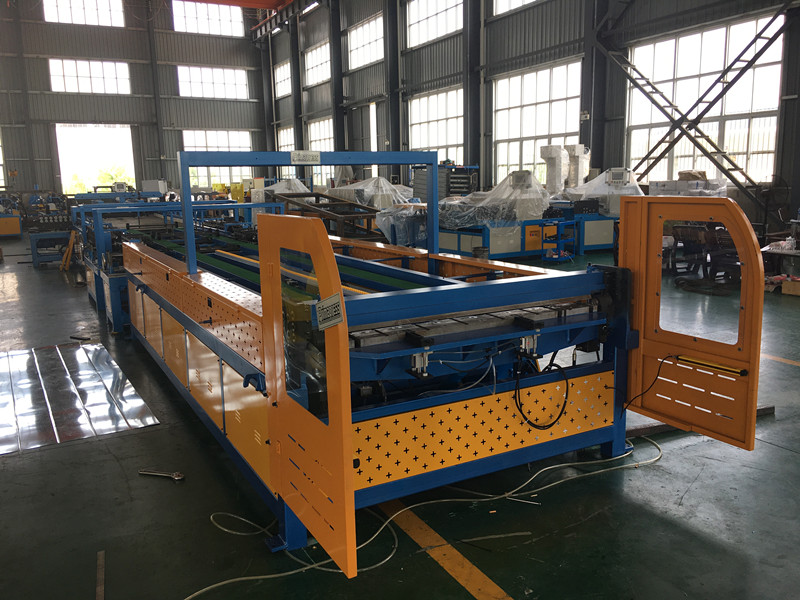

Basic configuration operation and technical analysis of automatic air duct production line

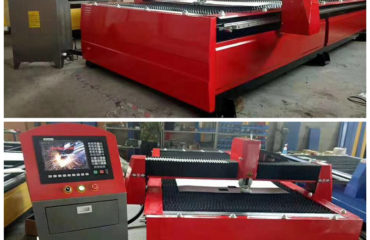

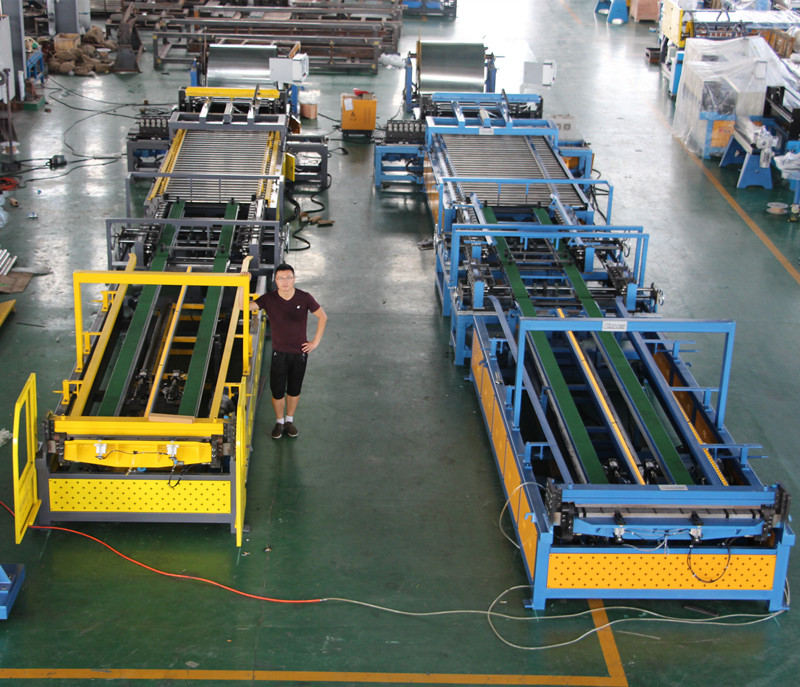

Fully automatic air duct production line + plasma cutting machine + multi-function biting machine + common plate flange machine + pneumatic folding machine,
equipped with the above equipment can realize the large-scale operation of the factory, and produce common plate flange ducts, and can also make The angle iron

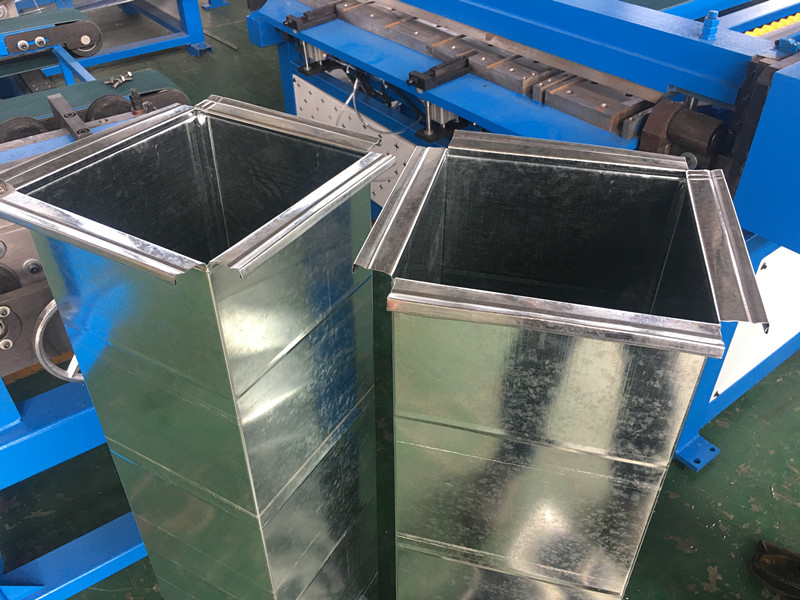

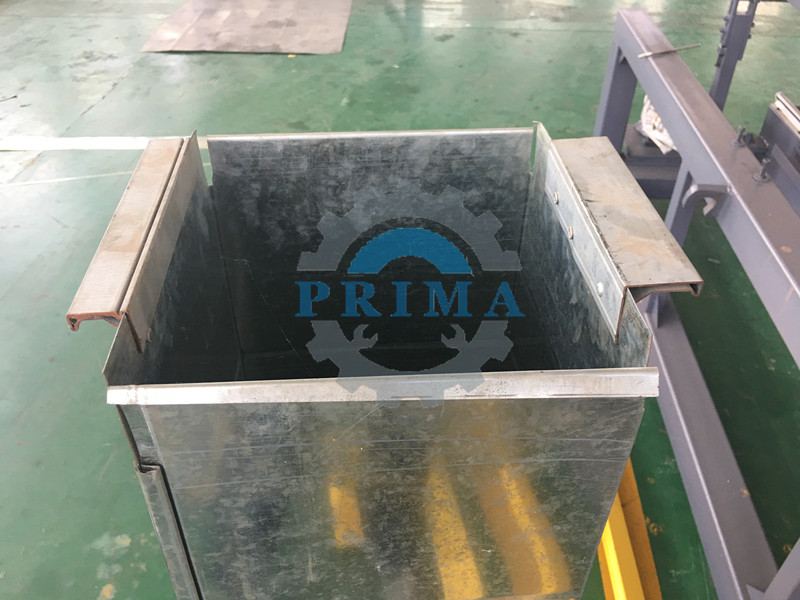

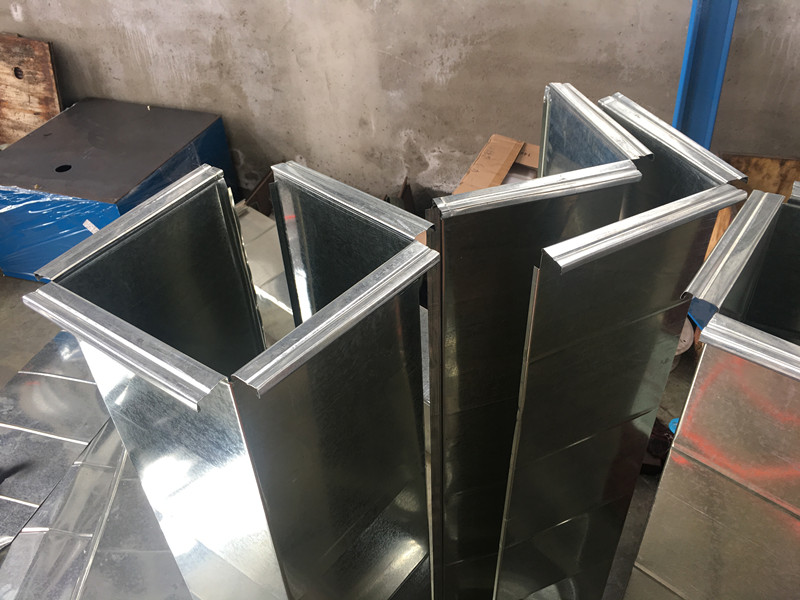

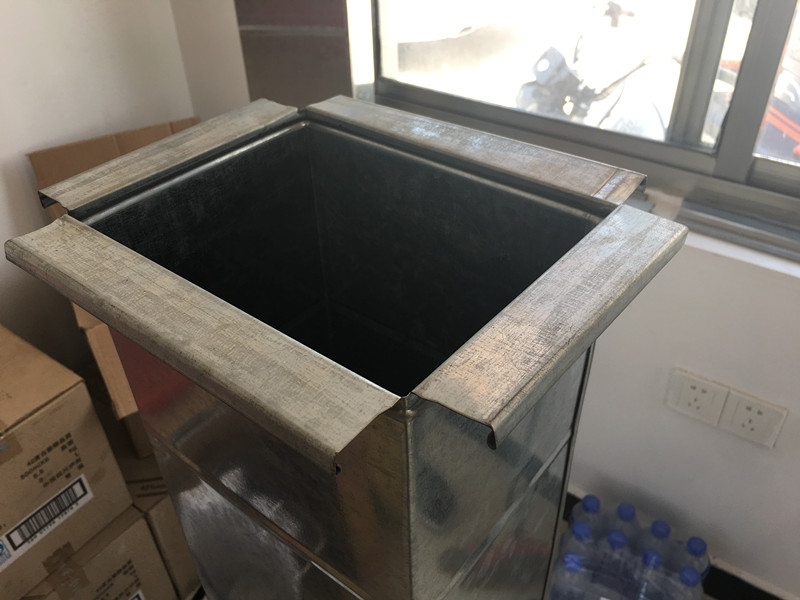

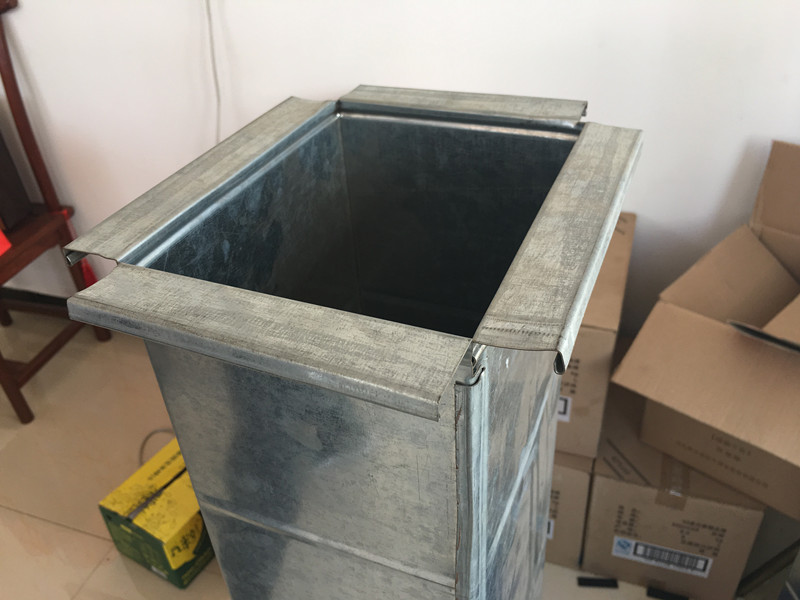

flange air duct greatly improves the production efficiency of the air duct and reduces the labor cost. The automatic air duct production line mainly forms common plate flanges/angle iron flanges/”C” type flanges, with a daily processing capacity of nearly 2000 square meters. Only need to enter the size, the production line will automatically complete uncoiling, leveling,
beading, A series of processes such as angle of attack, shearing, joint biting, flange forming, hemming, etc. The basic configuration of the automatic air duct production line:
1. Electric discharge rack 2. A set of leveling and beading device 3. Four sets of hydraulic punching square cut corners with die 4. A set of hydraulic shearing and bending device
5. Patented product lifting A set of reeling machine 6. A set of double TDF common plate flange forming machine 7. A set of double angle steel small side forming machine
8. A set of bending machine 9. A set of control system and operating table
Analysis of Operation Technology of Air Duct Production Line
The duct production line is equipped with professional duct production equipment such as feed roller device, leveling and beading machine, punching angle and punching machine,
etc., as well as other accessories such as trays. If you want to produce high-quality air ducts, the key is to master the operating technical points of professional air duct equipment.

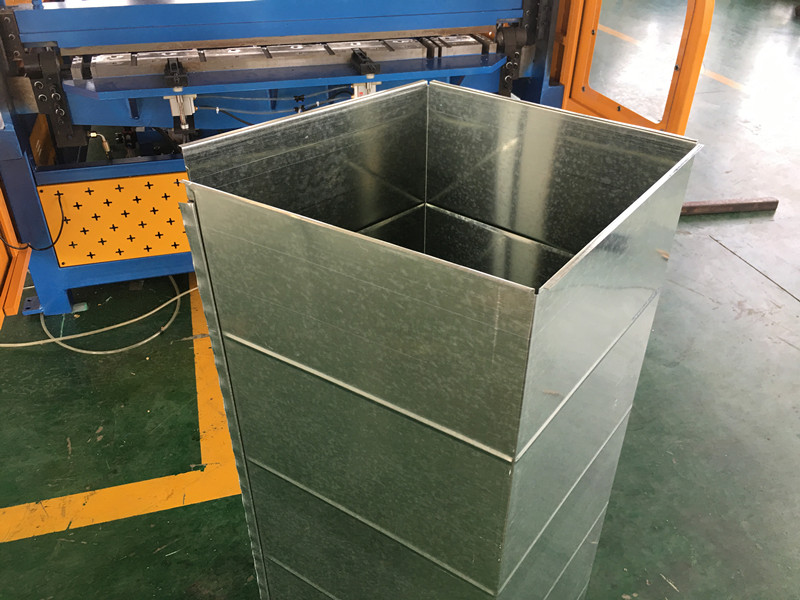

The following are the details. Air duct production line manufacturer Guangzhou Combifon stated that beading is one of the key technical points of air duct production.
It mainly uses five-line parallel to form five-line arcs and angles, so that the formed sheet will greatly increase the rigidity of the rigidity. The straightening work is done through
the leveling device. The lower roller of the leveling machine is fixed, while the upper roller uses other tools to rotate the screw rod to adjust the gap between the two.
The feeding method of the air duct production line is with the help of a mechanical platform, and the finite block is adjusted in a freely movable manner. In this state,
the feeding is not only stable.
Reliable and more accurate. However, the way that the air duct performs cutting and blanking is controlled by the control system according to the actual requirements of the air duct.
